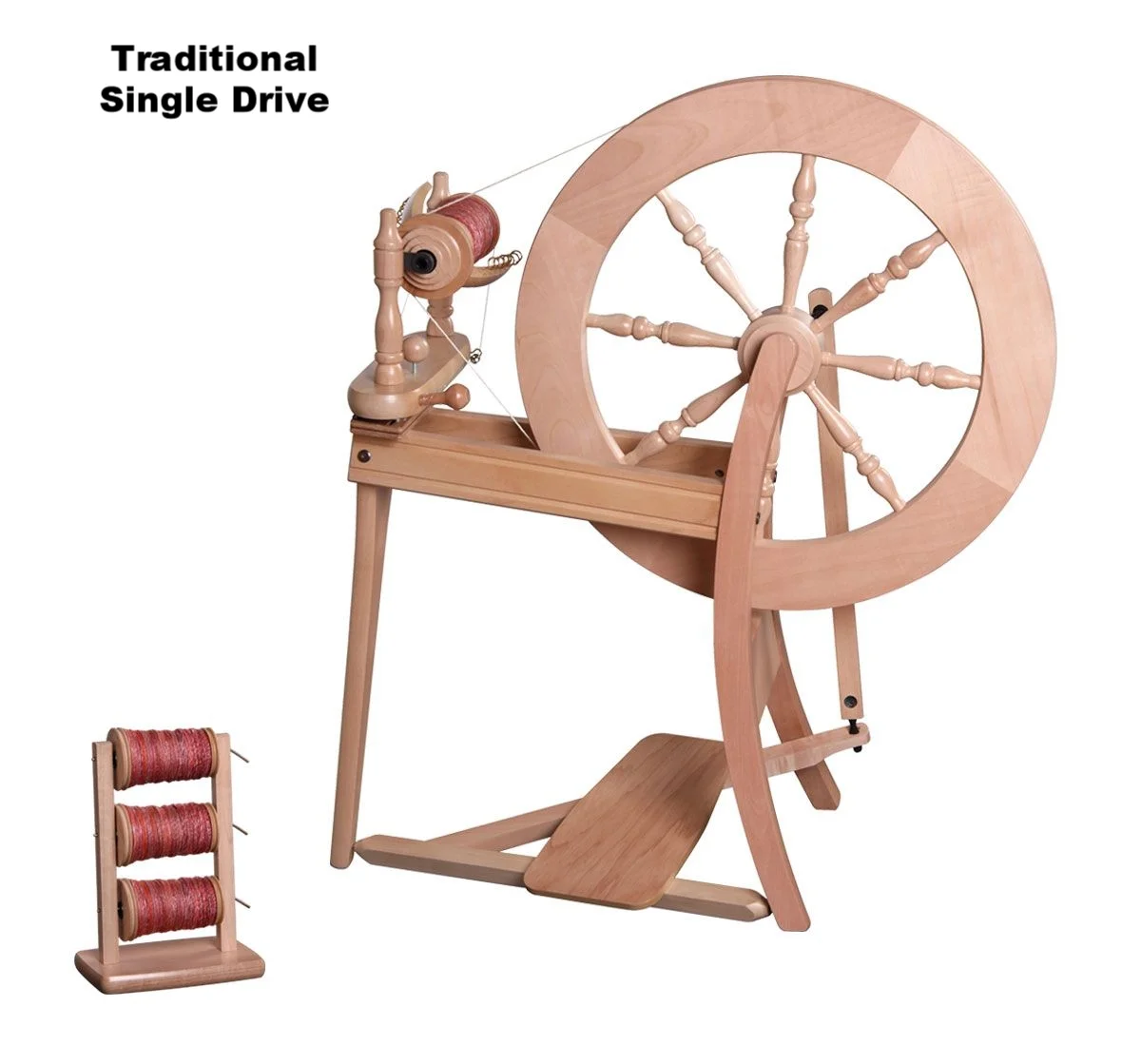

Ashford Traditional Spinning Wheel






Ashford Traditional Spinning Wheel
The most popular spinning wheel in the world!
Why is it so popular? The separate drive band and bobbin brake adjustment is easy to understand and simple to operate. The bobbins are quick and easy to change. Scotch tension and 4 speed flyer allow for a wide variety of yarn to be spun. Horizontal adjustment of the maiden bar allows perfect alignment with the 4 speed whorl.
Ball bearings and large 22 inch wheel makes treadling smooth and effortless and easy to maintain a steady speed. The wide legs give good stability especially when speed spinning. The treadle is pivoted to allow a comfortable heel-toe action.
Many optional accessories make this an extremely versatile wheel. Proven design for over 40 years. Available natural (unfinished) or factory clear lacquer finish.

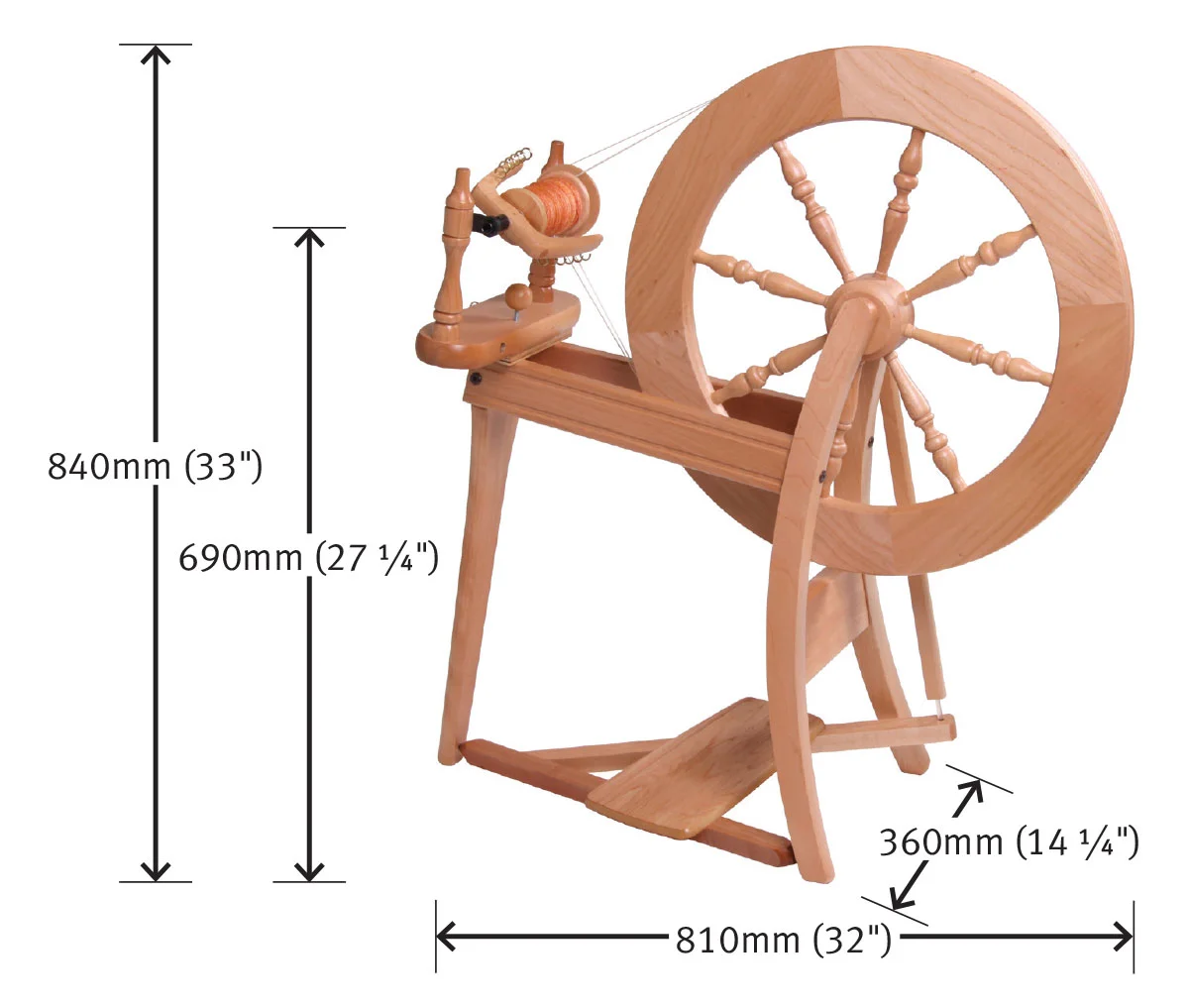

Weight 17.5 lbs. Orifice height 26.5" Orifice 3/8" Wheel ships as kit. Basic tools required for assembly.
single drive ratios 7, 9, 12, 17
double drive ratios 7.5, 9.5, 13 (16 bobbin lead)
Included: 4 standard bobbins, lazy kate, threading hook, learn to spin booklet.
Traditional Single Drive Manual
~~~~~~~~~~~~~~~~~~~~~~
This will Ship Direct to you From Ashford in New Zealand.
🚚 Free Shipping to your physical address that matches your payment card account. Or if you are picking up at our location.
Enter Discount Code: ASHFORDFREESHIP
Do not enter discount code if shipping to a Alternate Address or a P.O. Box.
Some items may be delayed to ship. Click Backorder Report
MANUFACTURERS WARRANTY. In the unlikely event there is a fault in the manufacture of any part of an Ashford product, they will replace that part, if claimed, with proof of purchase within 12 months from the date of purchase.
Ashford products are designed and manufactured to meet high standards of quality, durability, and performance. Any modification including the addition of aftermarket parts or using them in a manner other than intended, will void the manufacturer's warranty. Ashford cannot guarantee the safety, functionality, or longevity of altered products. To ensure your Ashford product remains covered under warranty, please use only genuine Ashford parts and follow the recommended guidelines for use and maintenance.
Single Drive UPC 9418647103748 Lacquer 9418647103847
Double Drive UPC 9418647104325 Lacquer 9418647104424
Sold in sets of 4 bobbins
Replacement wheel bobbins or add additional bobbins to your existing set.
Standard Bobbins: Kiwi (single drive) , Elizabeth (double drive). Traditional or Traveller spinning wheel uses single or double drive bobbin.
If your wheel is manufactured before 1975 standard bobbins may not fit, check the dimensions carefully.
Ashford High Speed, Double Drive Bobbin Fits only double drive wheels. - Ashford Elizabeth, Traveler or Traditional: Equipped with the high speed whorl and set up in double drive.
If not sure which bobbin to order, check the dimensions of the bobbin pictured or contact us before ordering. These bobbins are designed to only fit Ashford Spinning Wheels.
Special Order item - Shipping will be delayed.
Ordering a Ashford Wheel today? Ashford wheel and/or Ashford accessories not in our stock and is over $300 will ship from Ashford in New Zealand for the Flat Rate of $35. If you overpay on shipping we will refund. Air Shipments from Ashford in New Zealand allow 7-12 days for delivery.
Ashford special orders under $300 will be delayed until our next shipment from New Zealand then shipped from our location in Washington to you. Allow up to 6 weeks to deliver.
Maintenance kit Includes: threading hook, tension spring, 12 x flyer hooks, leather conrod connector and clip, brake and drive bands. Spinning Oil Transparent 15ml - 1/2 oz squeeze bottle. Convenient 32mm - 1 1/4' blunt needle applicator for hard to reach bobbin, flyer and wheel bearings. The aluminum cap has a neoprene seal and air tight sealing scabbard. The bottle contains non-staining, high grade, aromatic-free, white mineral lubricating oil classified as non-hazardous. Refillable.
Pair of Maiden Uprights, for Traditionals, Travellers & Elizabeths
Flyer Bearing Standard Set (FLYR1/4 & FLYR1/2 and 2 screws)
Flyer Bearing Jumbo Set (FLYR1/4 & FLYR3/4 and 2 screws)
Finishing Wax Polish 75gm Made from beeswax and tree oils, it is ideal for new natural timber or rejuvenating and restoring loved and lacquered products.
~~~~~~
Items on this page are Special Order. Allow us time to get parts from Ashford in New Zealand. Click Here for details on Special Order shipments.
Some parts are Wheel Specific. Enter your wheel model in message area when ordering.
Fill your bobbins evenly with the squeeze-and-slide stainless steel hook.
Fiberglass arms make these flyers light and strong.
compatibility will only fit the Ashford models below:
- traditional (single drive)
- traveller (single drive)
Ratios
traditional (single drive): 6.5, 8.5, 11.5, 17.5,
traveller (single drive): 5.5, 7.5, 10, 15
orifice10mm (½")
includes 1 sliding hook single drive bobbin
finish natural or clear lacquer
9418647140699
Special Order or you wish to add to your Ashford New Zealand shipment. Click Here for details on Special Order shipments from Ashford New Zealand.
Manufacture delay on some equipment, Click Here for current status.
Fill your bobbins evenly with the squeeze-and-slide stainless steel hook. Fiberglass arms make these flyers light and strong. The yarn is controlled in the hook as you spin. Includes one bobbin.
Available for your Elizabeth, Traditional and Traveller double drive spinning wheels.
Ratios
Elizabeth 8.0, 10.5 and 14.0:1
Traditional 7.5, 9.5 and 13.0:1
Traveller 6.0, 8.0 and 10.5:1
finish natural or clear lacquer
orifice 10mm (½")
included accessories- 1 sliding hook flyer bobbin double drive
compatibility will only fit the Ashford models below:
- elizabeth 2
- traditional (double drive)
- traveller (double drive)
Special Order or you wish to add to your Ashford New Zealand shipment. Click Here for details on Special Order shipments from Ashford New Zealand.
Manufacture delay on some equipment, Click Here for current status.
Fill your bobbins evenly with the squeeze-and-slide stainless steel hook. The 4 speed whorl allows a wide range of yarns to be spun.
Free Ground Shipping Lower 48 U.S.
ratios
traditional 4.5, 7.5, 9.5, 12.5:1
traveller 3.5, 6.0, 7.5, 10.0:1
orifice15mm (⅝")
included accessories
- 1 jumbo bobbin
- 1 10mm (½") orifice reducer bush
- 1 10mm (½") flyer bearing reducer bush
- threading hook
- nylon brake band
- cotton drive band
compatibility
- traditional
- traveller
Special Order or you wish to add to your Ashford New Zealand shipment. Click Here for details on Special Order shipments from Ashford New Zealand.
Manufacture delay on some equipment, Click Here for current status.
Upgrade your Elizabeth, Traditional and Traveller double drive spinning wheels.
Fill your bobbins evenly with the squeeze-and-slide stainless steel hook. Fibreglass arms make these flyers light and strong. The yarn is controlled in the hook as you spin. Choose either natural timber or smooth lacquer finish. Includes one bobbin.
Orifice 15mm (⅝") orifice. Kit also includes 10mm (½") orifice reducer bush and 10mm (½") flyer bearing reducer bush (so you can use your standard flyer without changing bearings).
finish natural or lacquered
orifice 15mm (⅝")
included
- 1 jumbo bobbin double drive
- 1 10mm (½") orifice reducer bush
- 1 10mm (½") flyer bearing reducer bush
- threading hook
- nylon brake band
- cotton drive band
compatibility will only fit the Ashford models below:
- elizabeth 2
- traditional (double drive)
- traveller (double drive)
Special Order or you wish to add to your Ashford New Zealand shipment. Click Here for details on Special Order shipments from Ashford New Zealand.
Manufacture delay on some equipment, Click Here for current status.
Quill Spinning Replace the flyer on your Traditional, Traveller or Elizabeth spinning wheel and enjoy the ancient craft of quill spinning.
When spinning from the point the spinner can spin any diameter yarn. The spindle is also useful for bobbin winding. Made from Silver Beech hardwood and strong polished steel.
Not in Stock - Special Order or add to your Ashford New Zealand shipment. Click Here for details on Special Order shipments from Ashford New Zealand.
Upgrade your Ashford single treadle spinning wheel to a double treadle wheel.
The kit includes treadles, a new crank and conrod joints. Unfinished Natural wood.
To fit a Ashford Traditional spinning wheel manufactured after 1971.
Using both feet doubles the energy and encourages the spinner to sit directly in front of the wheel, which is good for the body posture and balance. The cranks are offset 10 degrees so you can start the wheel in either direction without using your hands.
9418647115109 DTKTD
~~~~~~~~~~~~~~~~~~~~~~
This item will ship direct from Ashford in New Zealand
Ashford equipment will be sent by air direct to your physical address that matches your payment card. $35 Flat rate shipping Get Free Shipping if your Ashford order is over $300 enter discount code ASHFORDFREESHIP Multiple Ashford items qualify. Allow up to 2 weeks for delivery*
Do not enter discount code for P.O. box shipments Your order will need to ship through our location in Washington and then reshipped to you. This will delay shipping up to 4 weeks.
*Some items may be delayed to ship. Click Backorder Report
This comfortable four-legged chair has a tall, straight back for good posture and freedom of movement. Made from turned Silver Beech hardwood to complement your spinning wheel. Features hand hold. Chose unfinished or clear lacquer finish.
Seat height 17"
Overall height 38"
Ships as kit. Basic tools required for assembly.
~~~~~~~~~~~~~~~~~~~~~~
This item will ship direct from Ashford in New Zealand
Ashford equipment will be sent by air direct to your physical address that matches your payment card. $35 Flat rate shipping
🚚 Get Free Shipping if your Ashford order is over $300 enter discount code ASHFORDFREESHIP Multiple Ashford items qualify. Allow up to 2 weeks for delivery*
Do not enter discount code for P.O. box shipments Your order will need to ship through our location in Washington and then reshipped to you. This will delay shipping up to 4 weeks.
*Some items may be delayed to ship. Click Backorder Report
Message Elizabeth if you have questions.
